Operation mode: automatic driving + manual driving
Weight: 335 kg
Load: 1500 kg
Navigation mode: Laser SLAM/ Reflector
Communication mode: Wireless Wi-Fi/5G
Positioning accuracy: ±10 mm
Smart forklift battery parameters
Battery voltage/Nominal capacity: 24/60 V/amp hour
Battery type: Lithium iron phosphate
Battery weight: 14 kg
Battery life: 4-5 hours (replaceable battery)
Vehicle size
Overall length/width/height: 1635/812/2118 mm
Load center distance: 600 mm
Bearing length: 980 mm
Wheelbase: 1210 mm
Length to fork vertical plane: 485 mm
expression
Lifting height: 95 mm
Travel speed, full load/no load: 1/1.5 m/s
Maximum climbing capacity, loaded/unloaded: 5/10%
Ditch crossing capacity: ≤20 mm
Turning radius: 1500 mm
Aisle requirement
Straight channel width: 1200 mm
(Tray: Length 1200 mm x width 1000 mm)
Right-angle turning channel width: 2200 mm
(Tray: Length 1200 mm x width 1000 mm)
Single side loading channel width: 2400 mm
(Tray: Length 1200 mm x width 1000 mm)

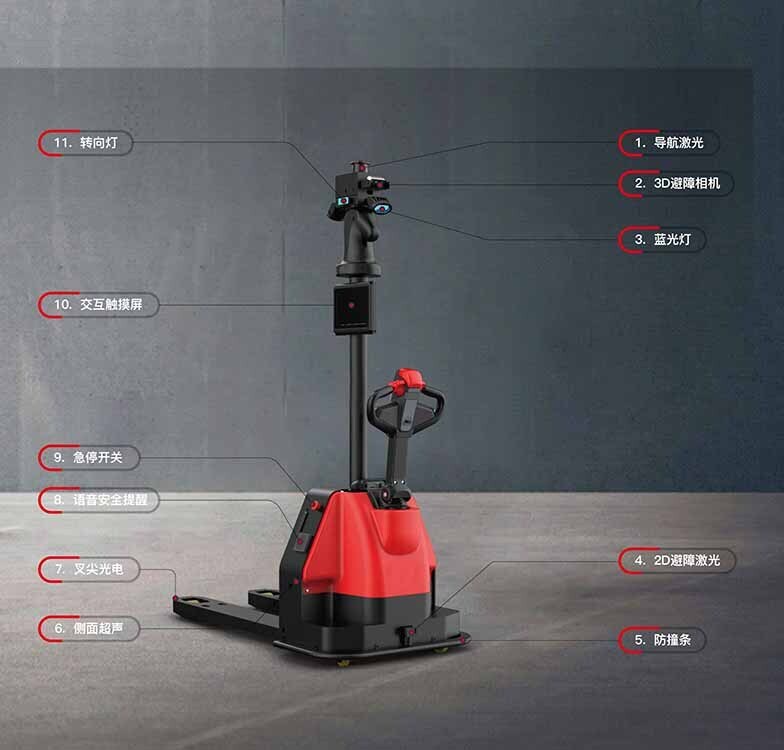

Traffic safety
Full-time emergency stop button: both sides
Audible and visual warning: Voice module + Blue light
Front safety protection: 180° obstacle avoidance laser at the bottom + top down 3D camera
Rear safety protection: fork tip photoelectric sensor
Side safety protection: Ultrasonic
Mechanical contact bumper: bottom front + bottom side
Tray positioning detection: rear fork
The above information is for product introduction, if the product appearance, technical parameters, configuration improvements, we will update the information as soon as possible, but in some cases, the information may be different from the latest situation, please contact the sales manager to confirm before placing an order.
