Body size: 1000 * 550 * 993mm
Cushion size: 460 * 420 mm
Body weight: 55 kg
Maximum load: 150 kg
Front wheel type: McKnum omnidirectional wheel
Rear wheel type: solid honeycomb
Front wheel diameter: 250 mm
Rear wheel diameter: 250 mm
Turning radius: 76 cm
Endurance: 20 Km
Auxiliary robot advantage
Autonomous navigation automatic follow
Mobile phone control, Bluetooth connection, remote control, let the auxiliary robot easily come to you. An intelligent robot will expand the scope of your life, as long as you want to reach.

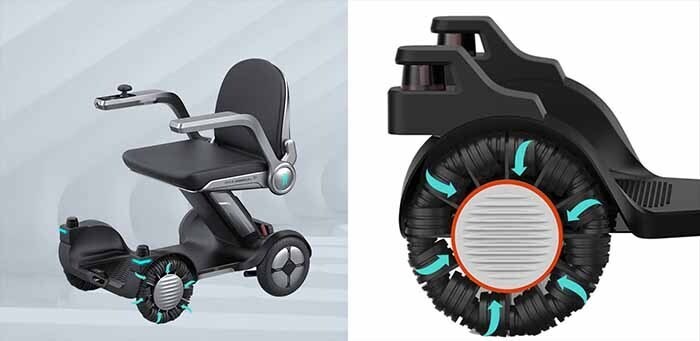

The McNamm omnidirectional wheels are powerful
24 large and small wheels alternately operate independently, and 96 fine bearings are flexible and strong, which can realize all-round lateral rotation. It can cross 6CM steps and easily cope with all road conditions.
Advantages of intelligent automatic auxiliary robots
Strong power easily cope with all road conditions
The suspension shock absorber is used, and the shock absorber effect is excellent, even on the bumpy road can be smoothly driven. Excellent obstacle crossing ability, up to 6cm platform, free access to vehicles. Complex road conditions, easy to face.
Autonomous navigation intelligent obstacle avoidance

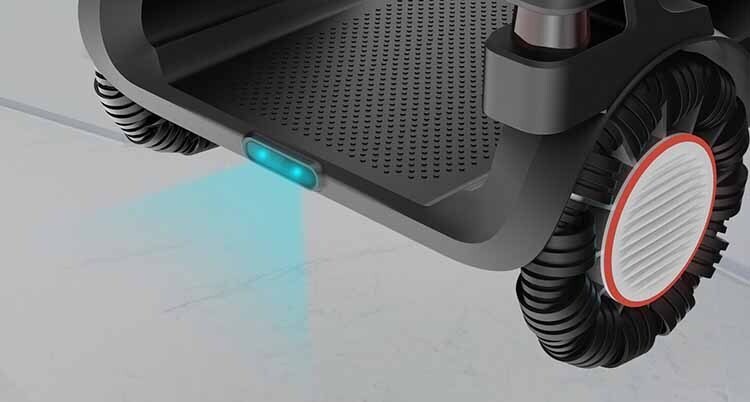

The body is equipped with LiDAR and depth camera, which can automatically identify the environment, pedestrians and objects, and automatically avoid obstacles.
Intelligent automatic auxiliary robot obstacle avoidance
Auxiliary robot product features
Easy to operate
Humanized Settings, convenient operation, can easily turn, climb, over the ridge.
ergonomics
Comfortable ride, easy to operate back tilt, 15° long sitting is not tired. The adjustable armrest is more suitable for upper limb movement.
Handrail adjustment
Armrests are angled and supported, allowing easy access from the front and sides of the body.
Remote rescue
There is a one-button SOS button under the operation panel. If there is an accident or need for help during driving, you can complete remote help without using a mobile phone, and your family and friends can receive help messages.
Intelligent application
Mobile phone connection, real-time data sharing. The use of the Internet of Things technology, both to support shared travel, personal use can also be controlled by mobile phones.
Very long endurance
The battery range is 20km and the charging time is 5 hours. Removable battery, can be charged independently, equipped with backup battery, extend the driving range.
