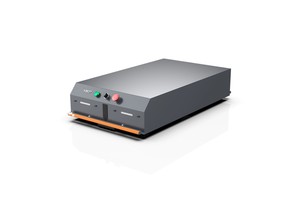

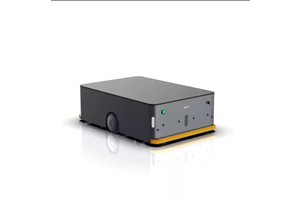

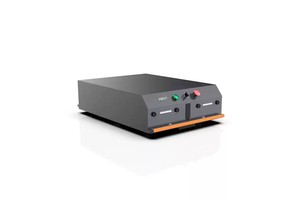

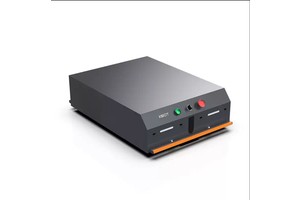

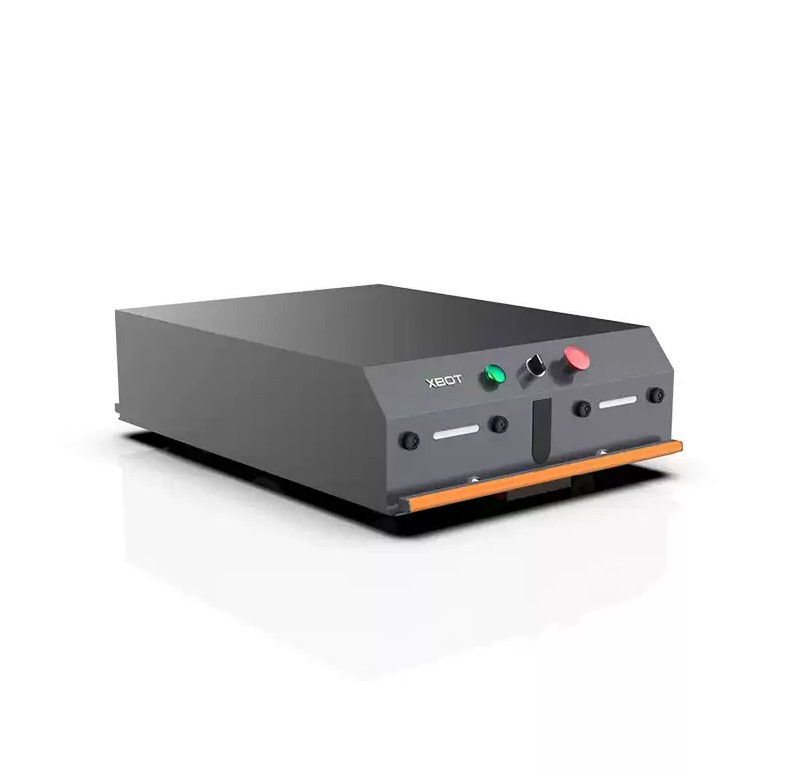

Product model: XBOT-AGV100
Path type: AB two-point reciprocating operation (multi-point docking, with turning function)
Load weight: 100kg

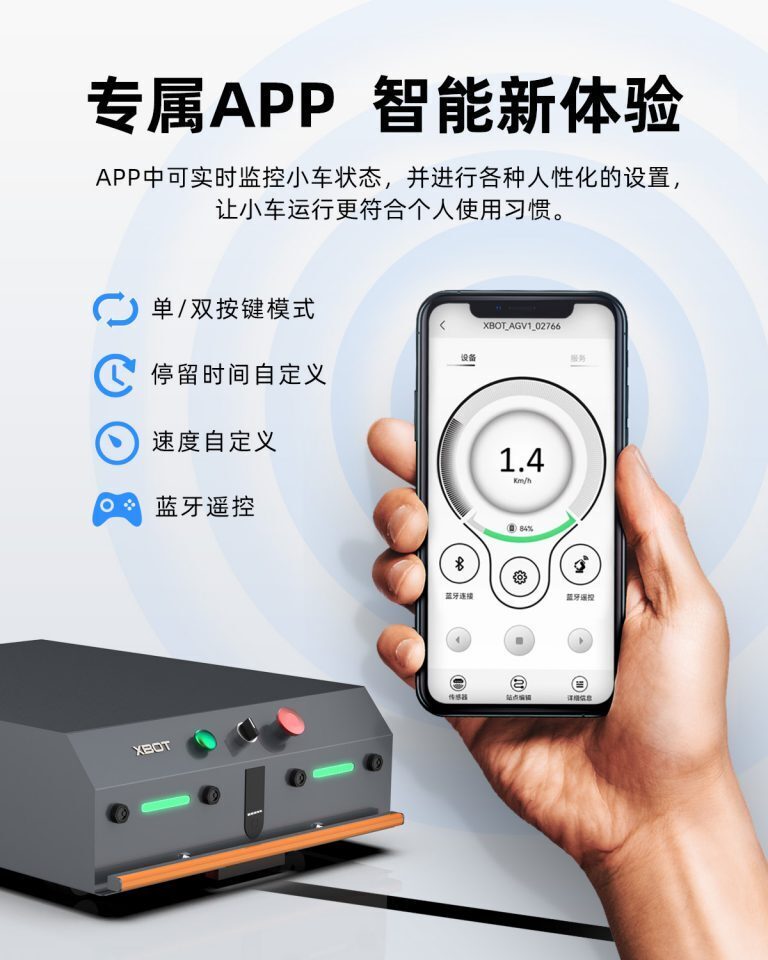

Running speed: 0.5-4km/h(APP adjustable)
Stop time: 1 second -40 minutes (APP adjustable)
Minimum turning radius: 1 m

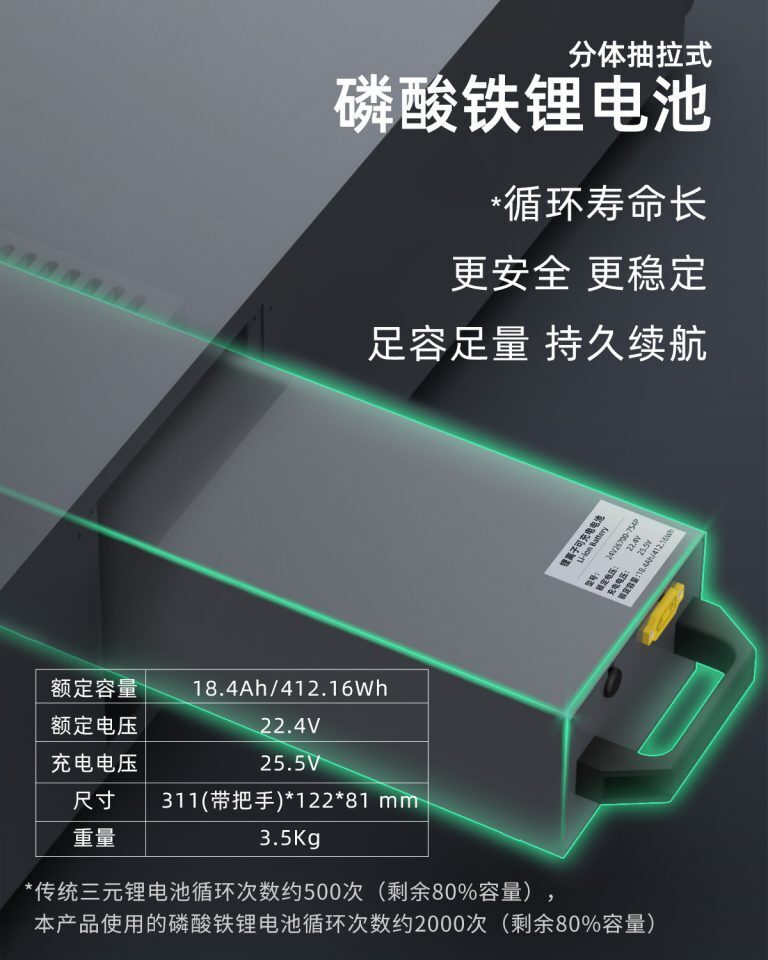

Battery capacity: 18.4Ah lithium iron phosphate battery
Standby time: 100 hours
Full load operation time: 40 hours (depending on the road surface used, type of load, etc.)
Average charging time: 6 hours

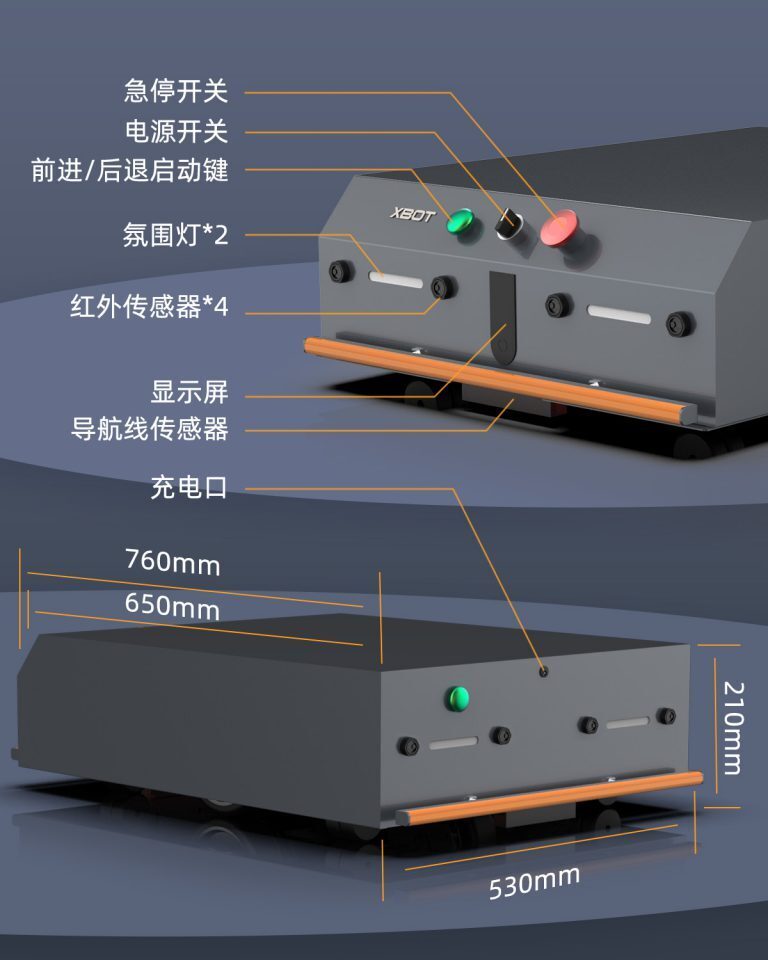

Body size: 760mm*530mm*210mm; Table size 650mm*530mm
Body weight: 36Kg
Obstacle detection: (including battery) infrared sensor (front 4, back 4) front and rear collision switch *2
Return mode: automatic/manual, manual bidirectional start: forward running backward running (APP Settings)
Charging method: direct charge/external charge (battery can be replaced directly with wireless charging)
Charging voltage: AC220V--DC25.2V 5A

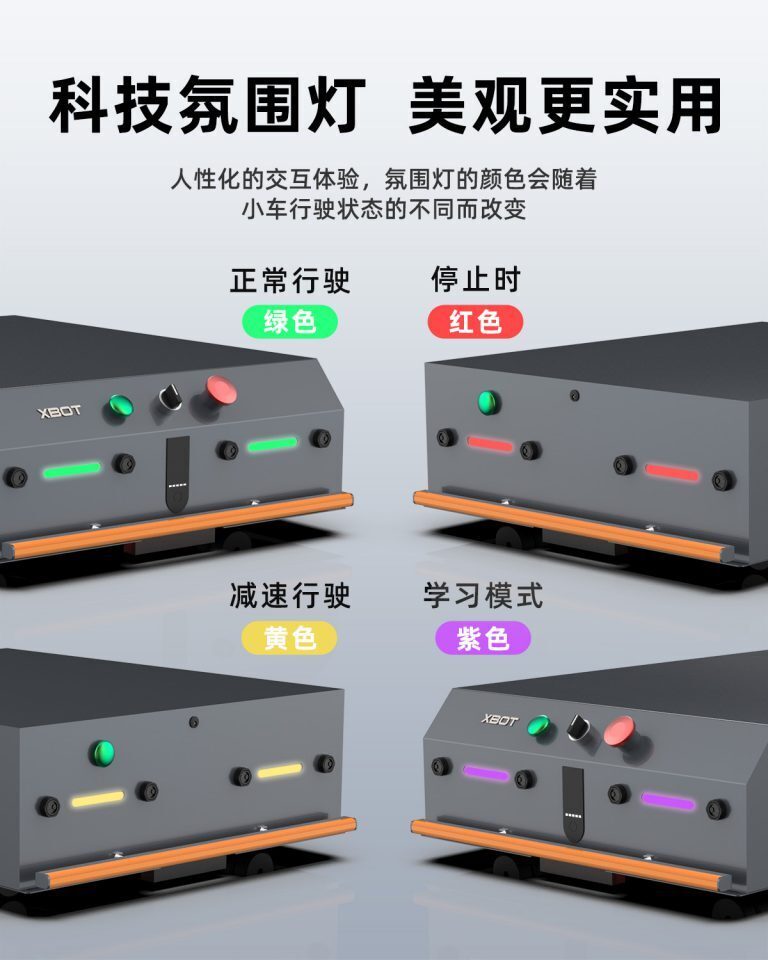

Warning light: with (can be turned off/on)
Prompt tone: arrival prompt tone, obstacle avoidance prompt tone (can be turned off/on)
Standard accessories: magnetic strip 20 meters, 1 charger
Magnetic strip parameters: smooth N pole, adhesive S pole; Thickness 1.2mm* Width 30mm 50 meters about 6.6KG
AGV industrial distribution robot version
XBOT-AGV intelligent industrial distribution handling robot 100KG version list
Standard EDITION

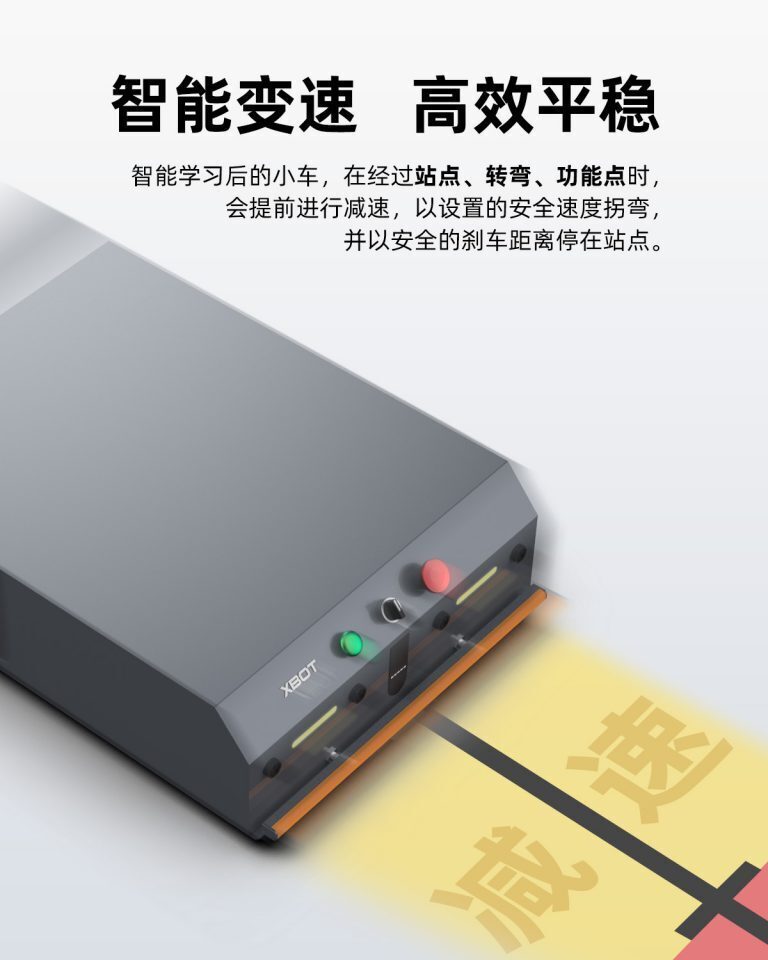

AB two point cruise, loop cruise, can stop in the middle of multiple stations. The APP can adjust the driving speed, turning speed, deceleration line speed and the start time after stopping.
Remote control version
Includes the standard version function, equipped with two 3-button remote control, remote control forward, pause, backward. (Optional USB to 433 remote control, send instructions through the serial port of the computer)
Site editing
Includes standard Edition features
You can edit forward, backward and length of stay for different sites.
Three multi-site operation schemes with different requirements can be preset. For example: Stop at sites 1, 2, 3, 4, 5, 6 on Monday, stop at sites 1, 3, 5 on Tuesday, stop at sites 2, 4, 6 on Wednesday.
Site call
· Includes full functionality for site editing, plus two 15-key remote controls.
Each site can be equipped with a multi-key remote control, and after each site number and remote control number are paired together through the learning function, which site needs the car only to press the corresponding number key, the car can automatically run to the location.
Site call (USB to 433) :
Replace 15-key remote control with USB to 433 remote control, and send site instructions directly through the serial port of the computer.
RS485 Serial communication (wired and wireless)
RS485 serial port Description:
Wired 485 and wireless 485 two categories
1, basic version:
Provide communication protocol, forward/stop/back three instructions, return car report. Includes standard Edition features
2, multi-site positioning function:
With designated station docking function, provide communication protocol, forward/stop/back three instructions, return car station positioning report. Includes site call, site editing, standard edition functions.
Trackless operation (Handheld Bluetooth remote control)
Handheld Bluetooth remote control, trackless operation, remote control acceleration and deceleration, cruise. Get off the rails and let the car do what it wants.
Includes standard Edition features
